FIRESAFE® 3 K90

FIRESAFE® 3 K90 shut-off device for commercial kitchen exhaust air



  • General Building Approval
    No. Z-41.3-721
  • Large clear cross-section

  • for commercial kitchen exhaust air, tested according to DIN 1366-2 and EN 15650 Annex C

  • Duct dimensions:
    Duct width: 250 mm to 1200 mm
    Duct height: 250 mm to 500 mm

  • Installation options: in solid walls, under or on ceilings, in lightweight partition walls and firewalls of lightweight construction

  • Optional dry installation using the 3 KES installation kit

Consisting of:

  • Housing made of galvanized sheet steel / stainless steel 1.4301

  • 2 thermoelectric trigger units (72°C)

  • Spring-return actuator with integrated limit switches





State of the Art

The FIRESAFE® 3 K90 was developed for safe and efficient use in commercial kitchen exhaust systems. Its large open area ensures low pressure losses and stable system performance. The robust housing made of sheet steel or stainless steel and the insulated damper blade ensure high temperature resistance and a long service life.

The spring-return actuator with integrated control quickly and reliably closes the damper after thermal activation at 72°C—even in the presence of grease deposits. Two limit switches enable precise feedback of the damper position and automatic shutdown of the fan.

The FIRESAFE® 3 K90 is suitable for horizontal and vertical duct runs and meets the requirements of fire resistance class K90. It can be flexibly integrated into various wall and ceiling constructions for wet and dry installation. The size increments in 25-mm steps facilitate adaptation to project-specific requirements.



Fire Damper FIRESAFE® 3 K90

DIBt - Approval Number: Z-41.3-721
Fire Resistance Duration: 90 minutes, tested according to DIN 1366-2 and EN 15650 Annex C
Application Area: For sealing off exhaust and supply air ducts in commercial kitchens
Duct Dimensions: 250 x 250 mm to 1200 x 500 mm
Installation Variants: Wet installation in:
- Solid wall, plastered solid wall
- Solid ceiling, solid ceiling with concrete base
- Gypsum wall boards
- Lightweight wall with metal stud or wooden stud/timber framing
- Lightweight wall/fire wall with metal stud and double-sided cladding
- Shaft wall with metal stud
Dry installation with 3 KES in:
- Lightweight wall with metal stud or wooden stud/timber framing
- Below a sliding ceiling connection
- Shaft wall with metal stud
Material:
Galvanized steel sheet
Optional stainless steel V2A 1.4301

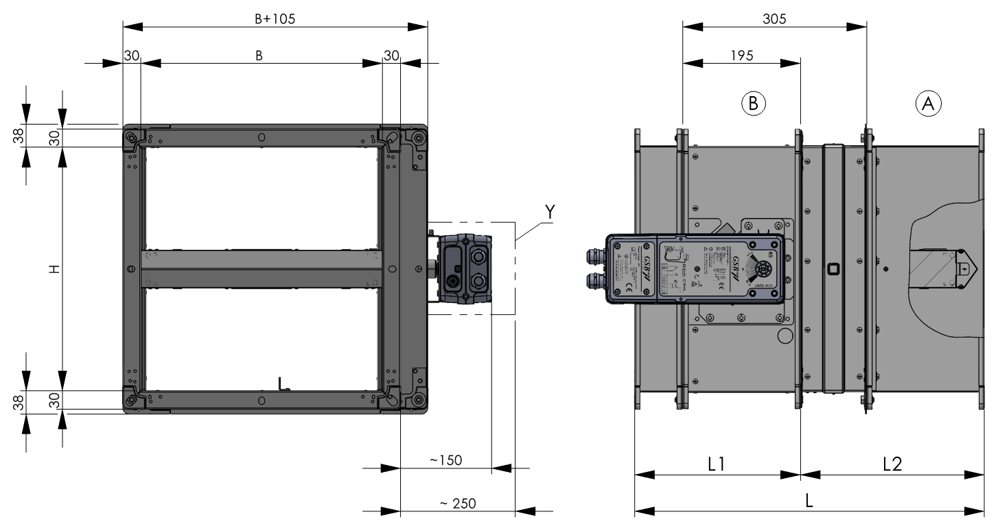

Dimensions: FiresafeK90 top view 1
Closing Operation:
De-energized fail-safe closure
Opening:
Motor-driven spring return drive
Triggering/Release:
Thermal release device (72°C)





Design Table

This table helps you calculate the required cross-sectional areas based on the airflow rate and velocity.

W x Hqv [m³/h]
flow velocity vₐ [m/s]
5677,5
250 x 250 1.125 1.350 1.575 1.688
300 x 250 1.350 1.620 1.890 2.025
400 x 250 1.800 2.160 2.520 2.700
500 x 250 2.250 2.700 3.150 3.375
300 x 300 1.620 1.944 2.268 2.430
400 x 300 2.160 2.592 3.024 3.240
500 x 300 2.700 3.240 3.780 4.050
600 x 300 3.240 3.888 4.536 4.860
700 x 300 3.780 4.536 5.292 5.670
400 x 400 2.880 3.456 4.032 4.320
500 x 400 3.600 4.320 5.040 5.400
600 x 400 4.320 5.184 6.048 6.480
700 x 400 5.040 6.048 7.056 7.560
800 x 400 5.760 6.912 8.064 8.640
900 x 400 6.480 7.776 9.072 9.720
1000 x 400 7.200 8.640 10.080 10.800
1100 x 400 7.920 9.504 11.088 11.880
1200 x 400 8.640 10.368 12.096 12.960
500 x 500 4.500 5.400 6.300 6.750
600 x 500 5.400 6.480 7.560 8.100
700 x 500 6.300 7.560 8.820 9.450
800 x 500 7.200 8.640 10.080 10.800
900 x 500 8.100 9.720 11.340 12.150
1000 x 500 9.000 10.800 12.600 13.500
1100 x 500 9.900 11.880 13.860 14.850
1200 x 500 10.800 12.960 15.120 16.200

FIRESAFE® 3 K90

  • Flow-independent design
  • Versatile installation options
  • Flexible dimensions in 25 mm increments
  • Low pressure differentials
  • 10,000 cycles verified
